Field Notes on the deutz alternator Market, Testing, and Real-World Fitment

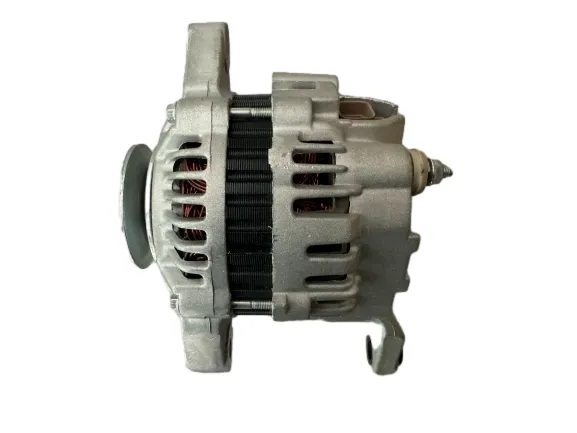

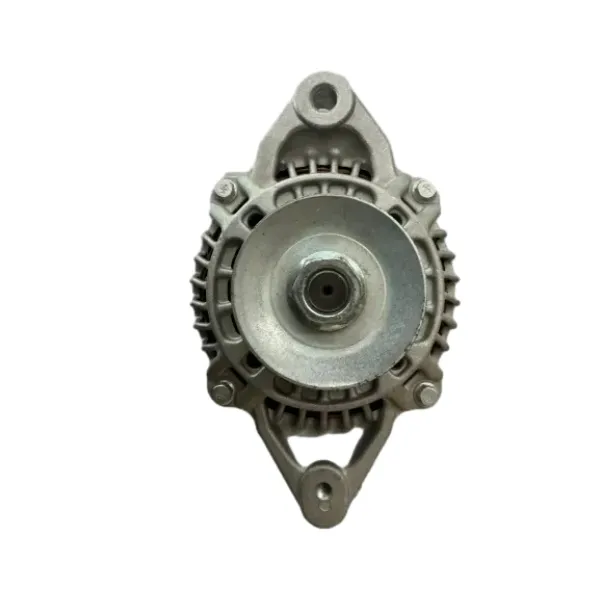

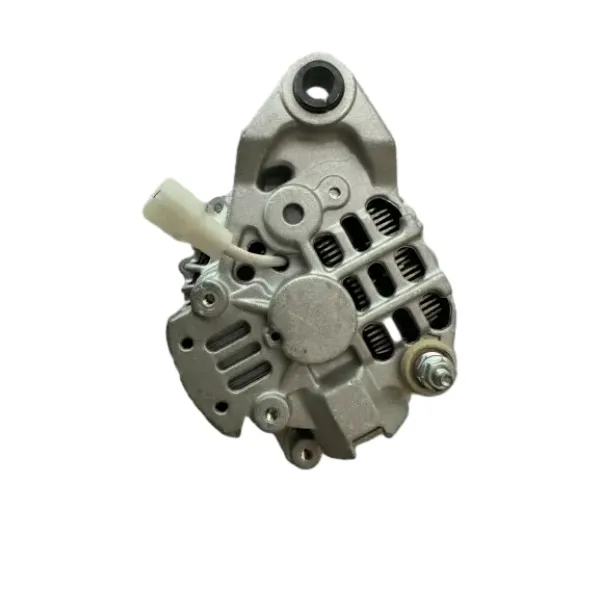

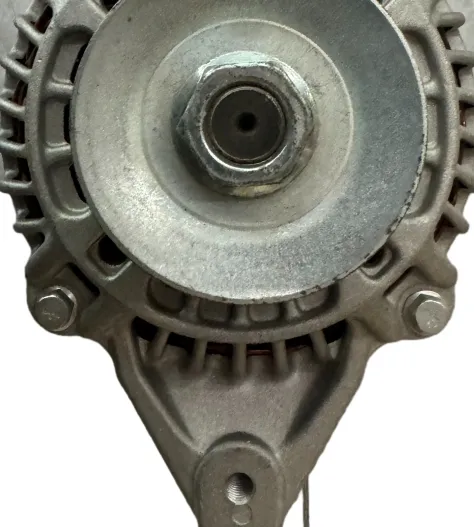

I’ve spent enough time in machine bays and cold yards to know one thing: alternators fail at the worst moment. That’s why the 12V, 65A “Alternator 14559184 for Construction Machinery Series” has quietly become a solid pick in compact excavators and small equipment fleets. It’s specced for platforms like the EC60C, and—this is important—often crosses into Deutz-powered applications with the same mounting and plug style. Always verify clocking, pulley, and connector before you pull the trigger on a deutz alternator, of course.

Industry snapshot

Trends I’m seeing this year: higher hot-rated output (not just cold bench numbers), better corrosion protection on die-cast housings, and smarter regulators that keep ripple tame at idle. There’s also a steady move away from reman in harsh-duty fleets; managers tell me the downtime risk just isn’t worth the marginal savings. Surprisingly, many customers say the quieter bearings are what they notice first after a swap.

Core technical specs (quick look)

Materials, build, and test flow

• Stator/rotor windings: high‑conductivity copper (≈99.9% IACS).
• Rectifier: 6‑diode avalanche type; low‑ripple design.
• Bearings: sealed (common sizes in this class: 6203/6202); long‑life grease.
• Housing: die‑cast aluminum; optional powder coat; salt‑spray targets ≈240 h.
• Testing: ISO 8854 output curve; thermal soak at ≈90°C; vibration 10–500 Hz at ≈3.5 g; EMC per ISO 7637‑2; endurance ≈400 h @ 80% load. Results from a recent bench: 65 A at ≈6,000 rpm rotor, ripple ≈0.4–0.8 V p‑p at 50 A.
• Expected service life: ≈4,000–6,000 h in mixed duty; idle‑heavy cycles reduce that—honestly, belt tension and heat make or break it.

Where it fits and why crews pick it

Typical use: compact excavators (EC60C class), loaders, light tower gensets, and equipment running Deutz engines in the 2–4 L range. Advantages I keep hearing: stable charging at low idle, decent efficiency (≈55–62% mid‑load), and bearings that don’t start singing after the first monsoon. If you’re replacing a deutz alternator, match the connector and clocking, then pick the pulley you actually run.

Vendor comparison (indicative)

Customization options

• Pulleys: single V, multi‑rib, overrun.
• Clocking: 12/3/6/9 o’clock to suit harness.
• Connectors: OE‑style plugs, pigtail kits.
• Surface: clear coat or powder for coastal sites.
• Private label and batch test reports for fleet tenders.

Quick case notes

1) Rental fleet, Central Europe: swapped five units on mixed compact excavators. Idle charging stabilized, fewer “low‑volt” DTCs on telematics. Manager said downtime dropped “noticeably” over winter.

2) Quarry support crew, coastal site: requested powder‑coat and sealed plugs. After ≈1,800 h, bearings still quiet; belt dust lower than prior deutz alternator spec, which surprised the tech lead.

Bottom line

If you need a 12V/65A unit that plays nicely with compact machines—and often crosses into Deutz engine bays—the 14559184 pattern is a practical, serviceable choice. Do the boring checks (mount, plug, pulley, clocking), ask for ISO 8854 output curves and EMC data, and you’ll avoid 90% of alternator headaches.

Authoritative citations

1. ISO 8854: Road vehicles — Alternators with regulators — Test methods and requirements. https://www.iso.org/standard/60706.html
2. ISO 7637‑2: Road vehicles — Electrical disturbances from conduction and coupling. https://www.iso.org/standard/75148.html
3. ISO 16750‑3: Environmental conditions and testing for electrical/electronic equipment — Mechanical loads. https://www.iso.org/standard/44387.html
4. EU RoHS Directive 2011/65/EU (and amendments). https://environment.ec.europa.eu/topics/waste-and-recycling/rohs-directive_en
