While closely related, the voltage regulator and alternator serve distinct but complementary functions in a vehicle's charging system. The alternator is the primary electromechanical device that converts mechanical energy from the engine into electrical energy through electromagnetic induction. In contrast, the voltage regulator is the electronic control unit that manages the alternator's output characteristics.

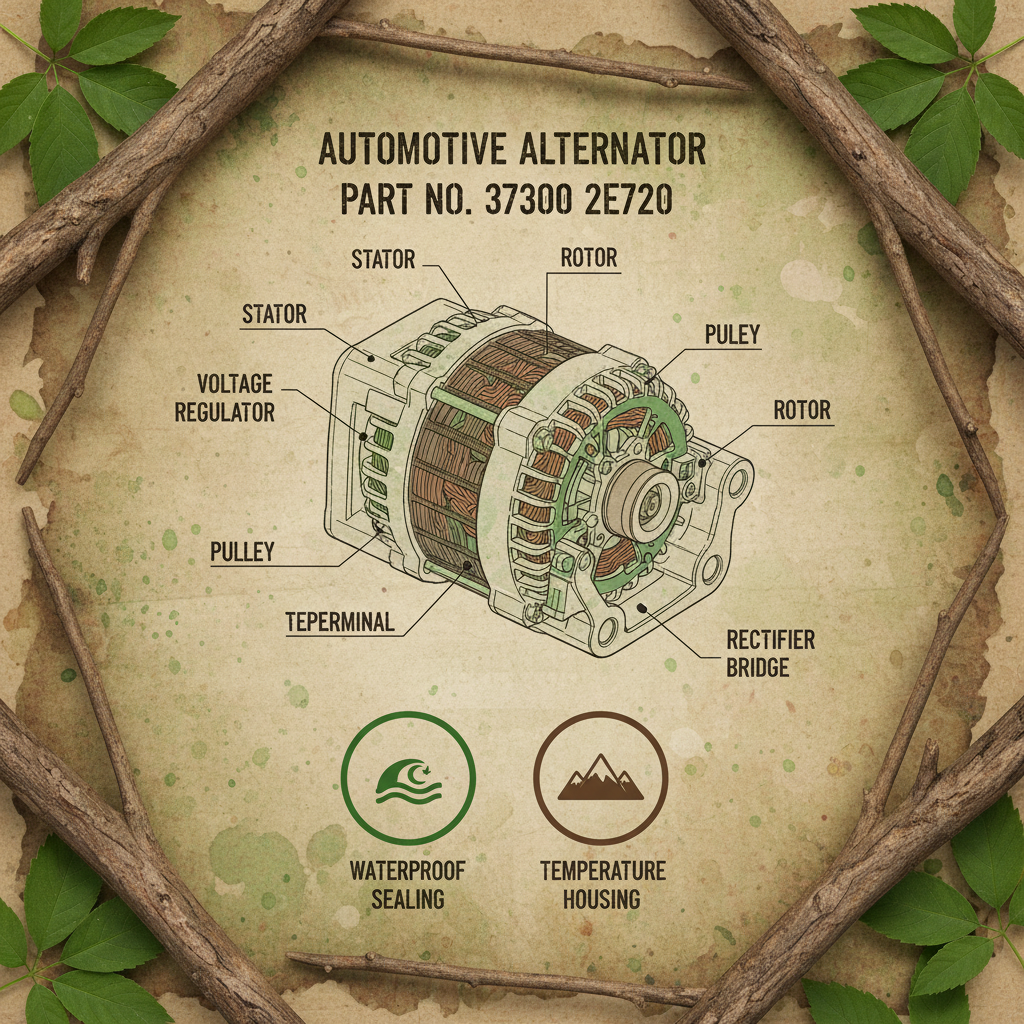

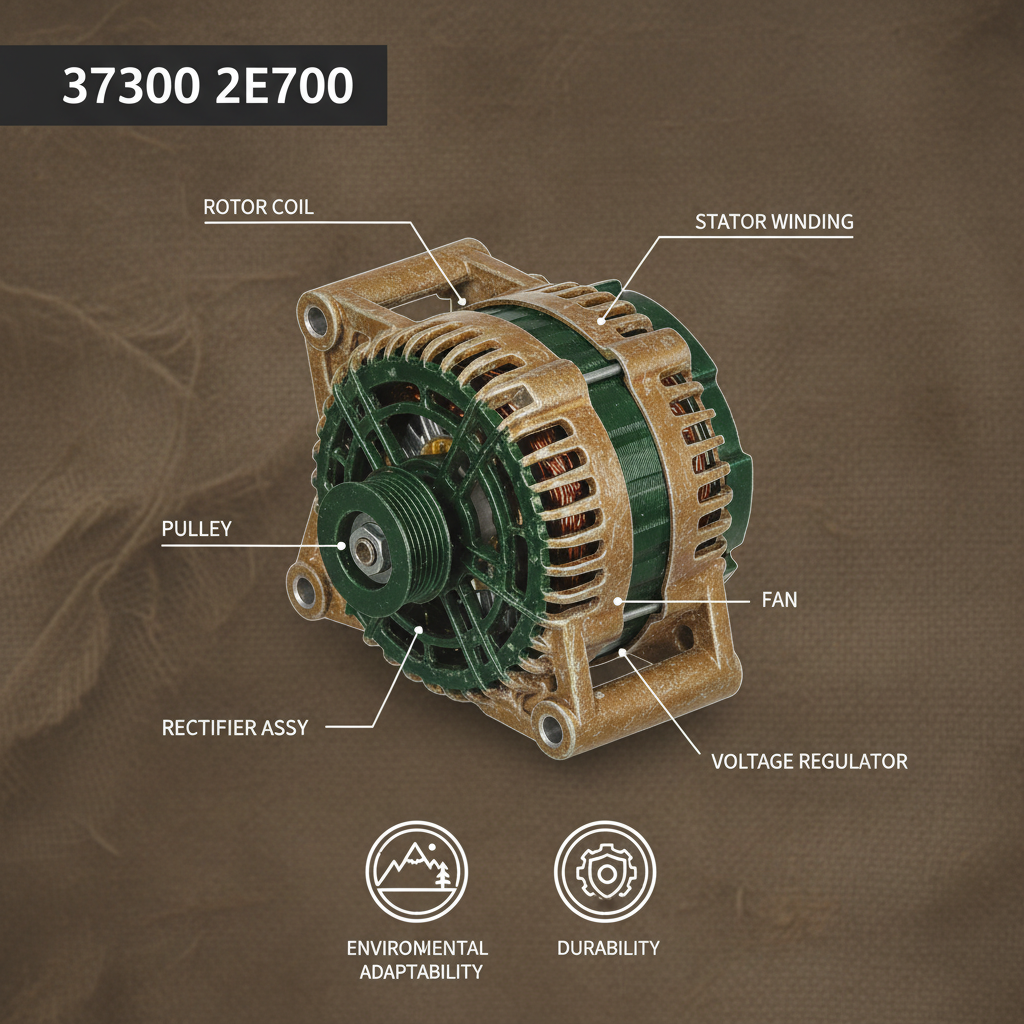

The alternator's physical components - rotor, stator, diode bridge, and housing - perform the actual energy conversion. The rotating magnetic field induces alternating current in the stator windings, which the rectifier converts to direct current for vehicle use. The alternator's output capacity depends on its physical design, including winding specifications, cooling capacity, and rotational speed.
The voltage regulator serves as the alternator's "brain," continuously monitoring system voltage and adjusting the rotor's field current to maintain proper output. Modern solid-state regulators use pulse-width modulation to precisely control field strength, responding to changes in engine speed and electrical load. Advanced regulators incorporate temperature compensation and may communicate with the vehicle's computer network for optimized charging strategies.
In many modern vehicles, these components are physically integrated into a single alternator assembly, though some older designs used external regulators. The integration provides better reliability and more precise control, as the regulator can directly monitor alternator conditions. Regardless of configuration, the regulator's proper function is essential for preventing both undercharging (which leads to battery depletion) and overcharging (which damages electrical components).
