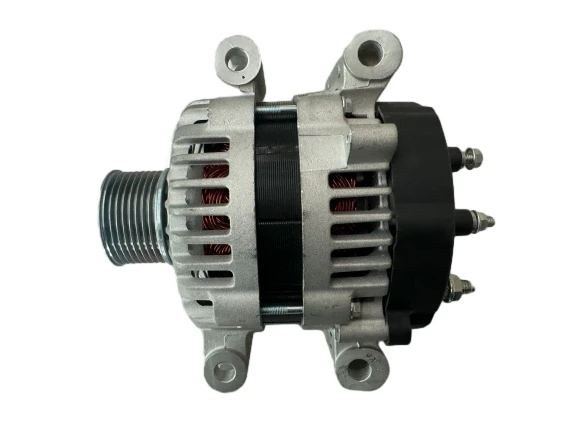

Carterpillar Alternator

The alternator's voltage output also responds to electrical load demands. With many accessories operating, the regulator may allow slightly higher voltage to maintain system stability. During periods of low electrical consumption, the voltage may decrease slightly to reduce unnecessary battery stress. This dynamic adjustment occurs continuously as driving conditions change.

In heavy-duty applications and some European vehicles, you may encounter 24-volt systems where alternators produce approximately 28 volts during operation. Large diesel trucks often use dual alternator setups that can generate combined outputs exceeding 300 amps at these higher voltages to power numerous accessories and maintain multiple battery banks.

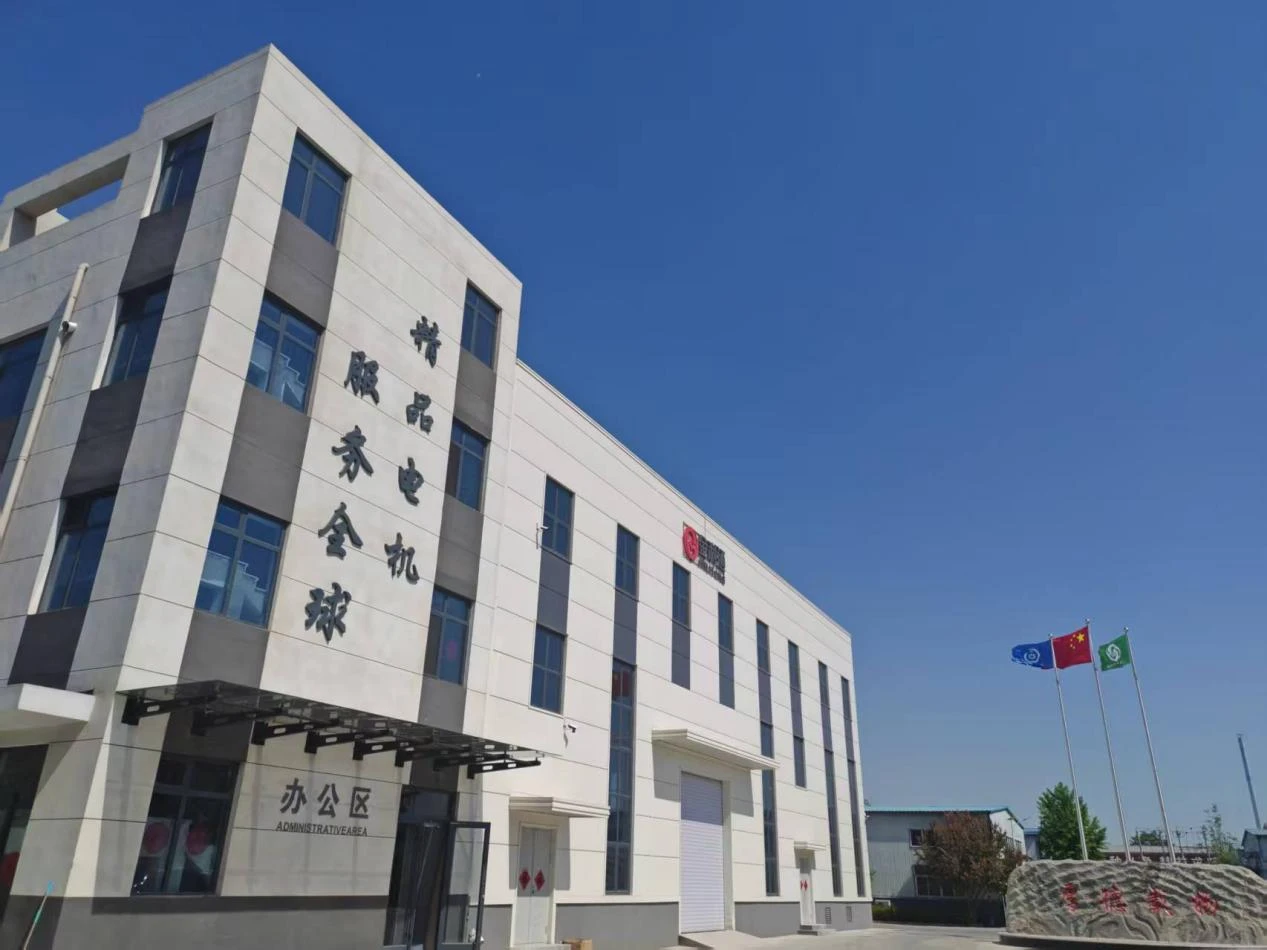

Why Choose Us?

How Many Volts Does an Alternator Generate?

The voltage output of an automotive alternator represents a carefully controlled parameter that balances battery charging needs with electrical system requirements. While the exact specifications vary slightly between manufacturers, most 12-volt vehicle charging systems maintain alternator output between 13.5 and 14.8 volts during normal operation. This range serves several critical purposes in vehicle electrical system management.

The lower threshold (around 13.5 volts) ensures sufficient voltage differential to charge the battery effectively. Since a fully charged 12-volt battery rests at approximately 12.6 volts, the alternator must produce higher voltage to push current into the battery cells. The upper limit (typically 14.8 volts maximum) prevents damage to sensitive electronic components and avoids excessive gassing in lead-acid batteries. Modern voltage regulators maintain this precision through continuous monitoring and adjustment of field current.

Main Components of Alternator

The automotive alternator comprises several key components that work in concert to produce stable electrical power. Understanding these elements reveals the sophistication behind this essential automotive system.

The rotor assembly forms the rotating electromagnet that creates the alternating magnetic field. It consists of a coil winding around an iron core, with claw-shaped pole pieces that concentrate the magnetic flux. Slip rings (in brushed designs) or wireless excitation systems (in brushless models) provide electrical connection to the field winding. The rotor's rotational speed and field strength directly determine the alternator's output capability.

Surrounding the rotor, the stator contains three sets of windings arranged 120 degrees apart to produce three-phase alternating current. These heavy-gauge copper windings are wound in specific patterns to optimize output and efficiency. The stator's design - including the number of turns and winding configuration - determines the alternator's maximum output current and voltage characteristics.

The rectifier assembly converts AC to DC using six or more diodes arranged in a three-phase full-wave configuration. These semiconductor devices allow current flow in only one direction, effectively flipping the negative portions of the AC waveform to create pulsating DC. High-current alternators may use additional diodes in parallel to handle increased loads. The diode assembly also prevents battery discharge back through the alternator when the engine isn't running.

The voltage regulator, whether internal or external, serves as the alternator's control center. Modern solid-state regulators monitor system voltage and adjust rotor field current accordingly using pulse-width modulation. Advanced units incorporate temperature compensation and may communicate with the vehicle's computer via data networks. The regulator ensures stable output despite varying engine speeds and electrical loads.

Additional mechanical components include front and rear bearings that support rotor rotation, cooling fans that prevent overheating, and brush assemblies (in brushed designs) that transmit current to the rotor. The entire assembly mounts within an aluminum housing that provides structural support while dissipating heat generated during operation.

Understanding Your Car Alternator

Can A Failing Alternator Cause My Electronic Stability Control To Malfunction?

Yes, stability systems require precise voltage to operate correctly. Low alternator output can cause the ESC to disable itself or trigger false activation as sensors and control modules behave erratically. This creates a serious safety concern in slippery conditions.

Why Does My Alternator Get Noisy When It's Raining?

Moisture can cause belt slippage on the pulley, producing squealing sounds. Water intrusion into the alternator (through damaged seals) may also create temporary noise as it evaporates from hot components. Persistent wet-weather noise suggests bearing seals are compromised and need attention.

What Causes Alternator Output To Decrease Over Time?

Normal wear reduces output gradually - brush wear decreases field current, bearing wear increases drag, and heat cycling degrades winding insulation. After 100,000+ miles, an alternator may still function but produce 10-15% less current than when new, struggling with modern electrical loads.

Why Do Some Alternators Have A Built-in Temperature Sensor?

Temperature-compensating alternators adjust their output voltage based on internal heat - reducing voltage when hot to prevent overcharging, increasing it when cold to ensure proper battery replenishment. This sophisticated control extends battery life in extreme climates.
